Motore a scoppio completo 30cc Himoto 1/5

30cc-1-
Codici: 30001
Titolo ENG: Engine Complete 30cc
Categoria: MOTORI
Scala: 1:5
Prezzo: 210.00 €

Motore completo 30cc Himoto 1/5

-Cilindrata: 30 cc
-Potenza: circa 3,9 CV a 18.500 giri / min
-Coppia: 2,9 Nm a 10.000 giri / min
-19.000 giri / min Velocità massima
-carburante Miscela: 1:25

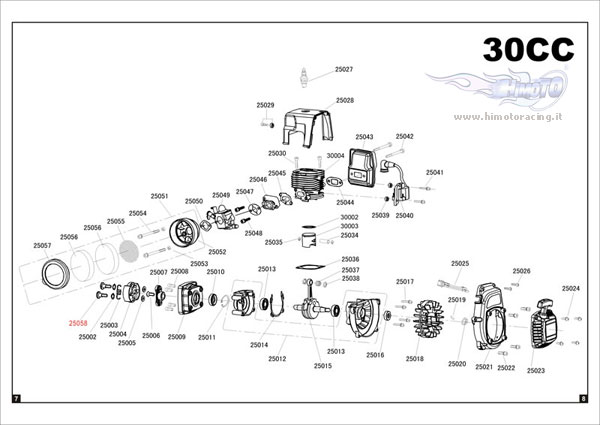

30cc-2-26cc-3-26cc-4-26cc-5-diagram_30001-
CodiceTitoloPrezzoFoto
25002Rondelle per motore Himoto 26CC/30CC/36CC/Washer 26CC/30CC/36CC2.90 €x-rh25002
25003Molla Frizione per motore Himoto 26CC/30CC/36/CC/Spring 26CC/30CC/36/CC4.90 €25003[1]-
25004Frizione motore a scoppio Himoto 26/CC/30/CC/36/CC/Gear Friction 26/CC/30/CC/36/CC29.90 €29005-
25005Rondelle per motore 26CC/30/CC/36CC Himoto/Washer 26CC/30/CC/36CC Himoto2.90 €25005[1]-
25006Vite M6*17 per motore 26CC/30/CC/36CC Himoto/Sunk Screw M6*173.90 €25006[1]-
25007Connettore frizione 26CC/30/CC/36CC Himoto/Clutch Bell Connector 26CC/30/CC/36CC Himoto11.90 €images
25008Viti M5*55 per motore a scoppio 26CC/30CC/36CC/Screw M5*55 26cc / 36cc / 30cc3.90 €25008[1]-
25009Coperchio campana frizione per motore 26CC/30/CC/36CC Himoto/Clutch Bell Cover 26CC/30/CC/36CC Himoto23.90 €25009
25010Cuscinetto paraolio per motore 26CC/30/CC/36CC Himoto/Ball Bearing Oil Seal 26CC/30/CC/36CC Himoto8.90 €25010
25011Spinotto motore 26CC/30/CC/36CC Himoto/Shim 26CC/30/CC/36CC Himoto3.90 €2016-05-13-17-08-59-1024x768
25012Carter motore 26CC/30/CC/36CC Himoto/Grankcase 26CC/30/CC/36CC Himoto69.90 €25012[1]-
25013Cuscinetti motore 26CC/30/CC/36CC Himoto/ Ball Bearing 26CC/30/CC/36CC Himoto16.90 €25013[1]-
25014Guarnizione Carter motore 26CC/30/CC/36CC Himoto/Grankcase Filling piece 26CC/30/CC/36CC Himoto9.90 €25014[1]-
25015Albero motore completo di biella per motore 26CC/30CC Himoto/Crank Group for 26CC/30CC89.90 €25015[1]-
25016Cuscinetto paraolio per motore 26CC/30/CC/36CC Himoto/Ball Bearing Oil seal For 26CC/30/CC/36CC Himoto8.90 €25016[1]-
25017Viti M5*25 per motore 26CC/30/CC/36CC Himoto/Screw M5*25 for 26CC/30/CC/36CC Himoto6.90 €25017
25018Volano motore 26CC/30/CC/36CC Himoto/ Flywheel for 26CC/30/CC/36CC Himoto40.90 €25018-25019-250201
25020Dado motore 26CC/30CC/36CC/Nut for 26CC/30CC/36CC3.90 €25020[1]-
25021Copertura ingranaggi motore 26CC/30CC/36CC Himoto/Gear Fan Cover 26CC/30CC/36CC Himoto28.30 €25021[1]-
25022Viti M5*20 per motore 26CC/30CC/36CC Himoto/Screw M5*20 For 26CC/30CC/36CC Himoto3.90 €25022[1]-
25023Strappino motore a scoppio 26CC/30CC/36CC Himoto/Pull Start Set for 49.90 €25023[1]-
25024Viti per motore 26CC/30CC/36CC Himoto/Screw M4*16 26CC/30CC/36CC Himoto5.90 €25024[1]-
25025Interruttore Power-off per motore 26CC/30CC/36CC/Power-off Switch for 26CC/30CC/36CC 10.90 €25025
25026Viti Screw (m4*10) per motore 26CC/30CC/36CC Himoto/Screw (m4*10) for 26CC/30CC/36CC Himoto3.90 €25026[1]-
25028Copertura Cilindro motore 26CC/30CC/36CC Himoto/Cylinder Cover for 26CC/30CC/36CC Himoto16.90 €2016-05-13-16-46-49-1024x768
25029Vite (M4*10) per motore 26CC/30CC/36CC Himoto/Screw (cap Head M4*10) for 26CC/30CC/36CC3.90 €25029[1]-
25030Viti M5*23 per motore 26CC/30CC/36CC/ Screw M5*23 For 26CC/30CC/36CC3.90 €25030[1]-
25034Spinotto pistone motore 26CC/30CC/36CC Himoto/Cylinder Pin For 26CC/30CC/36CC Himoto5.90 €25034
25035Fermo spinotto pistone per motore 26CC/30CC/36CC Himoto 1pz/E-clip for 26CC/30CC/36CC Himoto 1pz4.90 €25035[1]-
25036Guarnizione cilindro motore 26CC/30CC/36CC Himoto/Gasket Cylinder 26CC/30CC/36CC9.90 €25036[1]-
25037Cuscinetto biella per motore 26CC/30CC/36CC/Ball Bearing (needle Style)10.60 €250371
25038Rondelle di gomma per motore 26CC/30CC/36CC Himoto/Washer Elastic for 26CC/30CC/36CC Himoto3.90 €25038-1024x768
25039Rondelle per motore 26CC/30CC/36CC Himoto/Washer For 26CC/30CC/36CC Himoto6.90 €25039
25040Bobina motore 26CC/30CC/36CC Himoto/Glow Plug Igniter for 26CC/30CC/36CC Himoto29.80 €25040[1]-
25041Viti (m4*20) per motore 26CC/30CC/36CC Himoto/Screw (m4*18) for 26CC/30CC/36CC Himoto3.90 €556
25042Viti (m5*50) per motore 26CC/30/CC/36CC Himoto/Screw (m5*50) for 26CC/30/CC/36CC Himoto6.90 €11
25043; 25065Marmitta motore 26CC/30CC/36CC Himoto/ Silencer for 26CC/30CC/36CC39.90 €25043[1]-
25044Guarnizione collettore per motore 26CC/30CC/36CC Himoto/Exhaust Pipe Washer6.90 €25044[1]-
25045Guarnizione briglia carburatore a testata per motore 26CC/30CC/36CC/Venthole Washer9.90 €25045[1]-
25046Briglia carburatore per motore 26CC/30CC/36CC Himoto/Engine Connector for 26CC/30CC/36CC Himoto12.90 €25046[1]-
25047Guarnizione briglia carburatore per motore 26CC/30CC/36CC Himoto/Carburetor Washer for 26CC/30CC/36CC Himoto5.90 €25047[1]-
25048Viti M5 ø5*20mm per motore 26/CC/30CC/36/CC Himoto/Screw M5*50 for 26/CC/30CC/36/CC Himoto4.90 €250481
25050Guarnizione filtro aria per motore 26CC/30CC/36CC Himoto/Washer (Filtration Pad) 6.90 €25050[1]-
25051Cassa esterna filtro aria motore 26CC/30CC/36CC/25cc / 26cc / 30cc Air Cleaner Compete11.90 €25051[1]-
25052Filtro aria in spugna per motore 26CC/30CC/36CC/Air Cleaner for 26CC/30CC/36CC14.90 €25052[1]-
25053Dadi carburatore per motore 26CC/30CC/36CC Himoto/Nut 6.90 €25053[1]-
25054Viti M5*55 filtro aria per motore 26CC/30CC/36CC Himoto/Air Filter Screw M5*556.90 €25054[1]-
25055Rete Filtro aria per motore 26CC/30CC/36CC Himoto/Fire Guard Mesh6.90 €25055[1]-
25056Spugna filtro aria per motore 26CC/30CC/36CC Himoto/Sponge for 26CC/30CC/36CC Himoto14.90 €25056[1]-
25057Coperchio filtro aria per motore 26CC/30CC/36CC Himoto/Air Cleaner Cover for 26CC/30CC/36CC7.90 €25057[1]-
25063Carburatore motore 30CC Himoto/ 30cc Carburetor 79.90 €25049[1]-
30002Fascia pistone per motore a scoppio 30CC Himoto/piston curl 30CC14.90 €30002
30003Cilindro Pistone motore 30CC Himoto/Cylinder Piston 30CC29.90 €30003
30004Cilindro motore a scoppio 30CC Himoto/30cc Cylinder 97.90 €30004[1]-
